Connect to a Cloud SQL private IP from a Mac

A Cloud SQL instance with only a private IP is the right posture for a production database, and it means psql on your laptop cannot reach it. This guide explains why, what the Cloud SQL Auth Proxy does and does not change, and how to reach the database through a VM in the same VPC over Identity-Aware Proxy, by hand or with Ostgate.

By Ostgate · Updated

Why the private IP is unreachable from your laptop

A private-IP Cloud SQL instance gets an address such as 10.50.0.7 from a range reserved for private services access. Google places the instance in a VPC it manages and connects that VPC to yours with VPC Network Peering. The address is routable from resources inside your VPC, and from networks joined to it by Cloud VPN or Interconnect. It is not routable from the internet, so a laptop on home or office Wi-Fi has no path to it at all. Connection attempts time out.

Peering is also not transitive. A second VPC peered with yours cannot reach the database through your VPC, which is why "just run it from the other project's VM" often fails too.

The Cloud SQL Auth Proxy still needs a route

The Cloud SQL Auth Proxy is often the first suggestion. It authorizes connections with IAM and wraps them in TLS, and for a private-IP instance you run it with --private-ip:

cloud-sql-proxy --private-ip --port 5432 \
    acme-prod:europe-west1:orders-db

That command only works where the proxy can open a TCP connection to the private address. On a laptop without a VPN into the VPC it fails exactly as psql does. The proxy handles authorization and encryption, and reaching the address still takes something inside the network.

The working pattern: a VM in the VPC as a jump host

Any VM on the database's VPC can reach the private IP. If you can reach that VM, you can forward a local port through it. With IAP TCP forwarding, the VM needs no external IP either: Google carries your connection to the VM's internal address, after checking your own IAM permissions.

  1. Pick a VM with a network interface on the Cloud SQL instance's VPC. An existing one is fine; a small e2-micro works if you have none.
  2. Let IAP reach it over SSH: an ingress firewall rule from 35.235.240.0/20 on tcp:22, and roles/iap.tunnelResourceAccessor for each person.
  3. Make sure you can sign in to the VM over SSH, through OS Login or a metadata key.
gcloud compute firewall-rules create allow-iap-ssh \
    --project=acme-prod --network=default \
    --direction=INGRESS --action=allow \
    --rules=tcp:22 --source-ranges=35.235.240.0/20

Find the database's private IP in the Cloud Console on the instance's Overview page, or with the command line:

gcloud sql instances describe orders-db --project=acme-prod \
    --format="value(ipAddresses)"

The manual route with gcloud

Open an SSH session to the VM through IAP that does nothing but forward a local port to the database, and leave it running:

gcloud compute ssh bastion-01 --tunnel-through-iap \
    --zone=europe-west1-b --project=acme-prod \
    -- -N -L 5432:10.50.0.7:5432

Then, in another terminal:

psql "host=127.0.0.1 port=5432 user=postgres dbname=orders sslmode=require"

The same forward works for MySQL on 3306 and SQL Server on 1433. It holds a terminal open per database, stops when the Mac sleeps or the network drops, and while it runs any process on your Mac can use the local port.

Cloud SQL with only a Private Service Connect address

Private Service Connect is the default private connectivity method for Cloud SQL instances in new projects. Such an instance has no address from your VPC's private services access range. You reach it through a PSC endpoint: an internal IP address in one of your subnets, with a forwarding rule that points at the instance's service attachment. Google lets you use that address from any VPC network where you created the endpoint. By default an endpoint is not reachable from networks peered with that one, so each network that needs the database gets its own endpoint.

The endpoint must sit in a project the instance allows, the list set with --allowed-psc-projects. An endpoint in any other project stays PENDING until its project is added to that list. The instance itself shows the service attachment as pscServiceAttachmentLink and its DNS name as dnsName, which ends in .sql.goog.:

gcloud sql instances describe orders-db --project=acme-prod \
    --format="value(pscServiceAttachmentLink,dnsName)"

Read the endpoint's internal address from the address you reserved for it:

gcloud compute addresses describe orders-db-psc \
    --project=acme-prod --region=europe-west1 \
    --format="value(address)"

From a Mac, the free route is the same jump host as above, with two conditions: the VM must be on the network where the endpoint lives, and the forward goes to the endpoint's address instead of a private services access IP:

gcloud compute ssh bastion-01 --tunnel-through-iap \
    --zone=europe-west1-b --project=acme-prod \
    -- -N -L 5432:10.60.0.9:5432

The Cloud SQL Auth Proxy also connects to PSC instances, from version 2.5.0, with the --psc flag. It needs a DNS record for the instance's DNS name that resolves to the endpoint, in a private DNS zone on that network. Like the private-IP case, it has to run where that network is reachable, such as a VM inside it:

cloud-sql-proxy --psc --port 5432 \
    acme-prod:europe-west1:orders-db

Ostgate opens a tunnel to such an instance through its PSC endpoint (since 0.0.5). It looks for the endpoint in the instance's project and the consumer projects the instance allows, shows the endpoint's address in the Private IP column, and offers bastion VMs on the endpoint's network first. Without an endpoint the column reads “no endpoint” and Open Tunnel… says which projects it searched. The inspector also shows the instance's DNS name.

How Ostgate does it

Ostgate is a native macOS app that builds this path for you. It signs in with your Google account in your own browser and uses no gcloud and no Auth Proxy binary.

  1. See your databases. The Cloud SQL tab in Resources lists each pinned project's instances with engine and version, region, state, private and public IP, and tier. Listing needs the Cloud SQL Admin API enabled and roles/cloudsql.viewer.
  2. Open Tunnel… on an instance, or double-click it. The target is fixed: the private IP on the engine's port (5432, 3306 or 1433). For an instance on Private Service Connect, it is the address of the PSC endpoint that Ostgate finds in the instance's project or its allowed consumer projects.
  3. Choose the VM under Via bastion. Ostgate starts with the VM you used last, or a running VM on the database's VPC, or one in its project, and you can pick any other running VM of your pinned projects.
  4. Open it. Ostgate starts a forward from 127.0.0.1 through that VM to the private IP, over one SSH session carried by IAP. The local port stays the same from one run to the next, and Copy Command gives you the psql, mysql or sqlcmd line to paste.

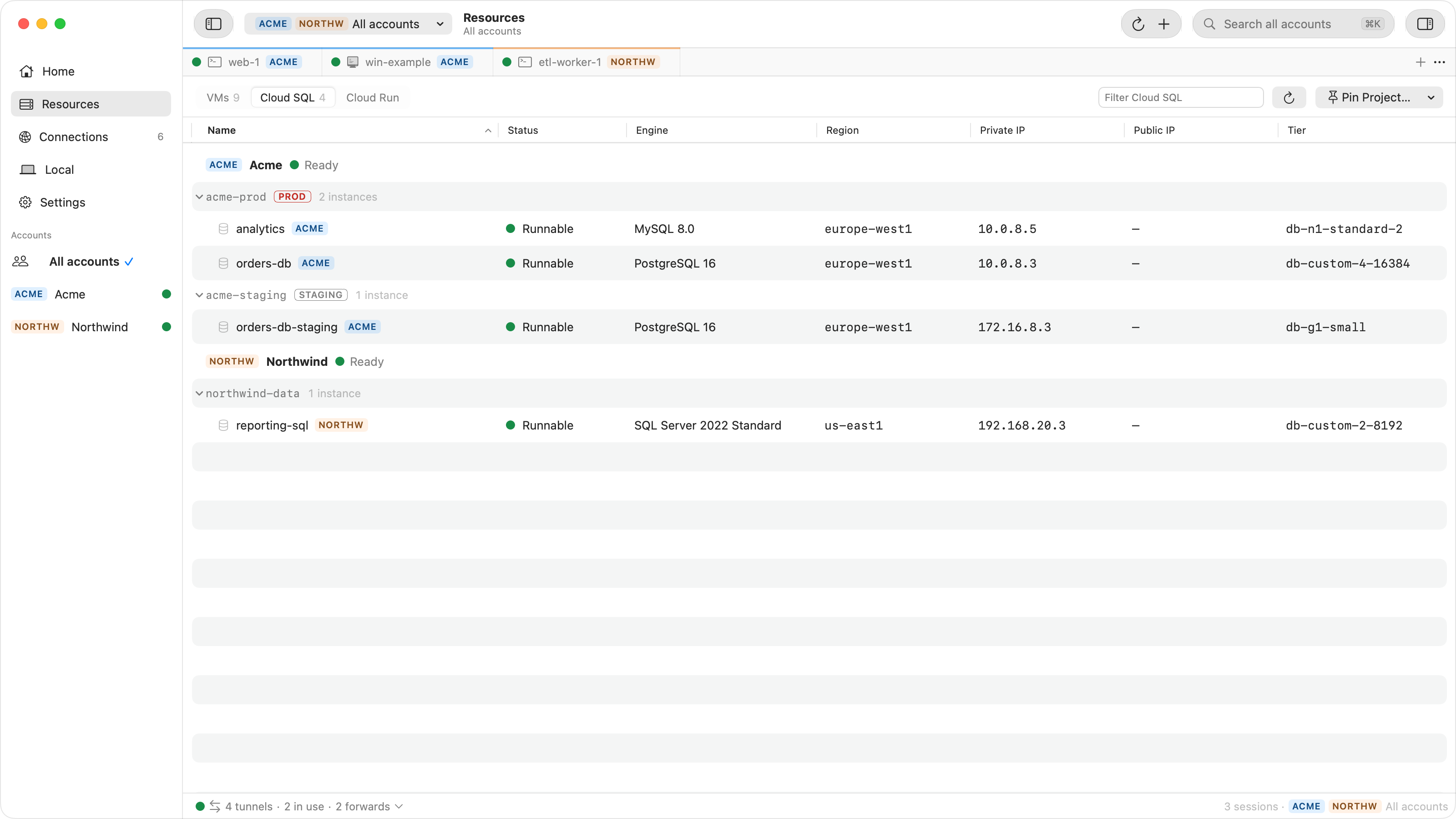

Ostgate's Resources view on the Cloud SQL type: PostgreSQL, MySQL and SQL Server instances grouped by account and project, each with its engine, region, state and private IP, with their tiers.
The Cloud SQL tab in Resources

The tunnel opens with My processes access, so psql, TablePlus, DBeaver or your IDE, running as your macOS user, can connect, and other users' processes on the Mac cannot. It is saved as a forward profile under Connections › Forwards, so the next time you choose Open Tunnel… on the same database Ostgate offers to start it again instead of creating a duplicate.

For more than one port through the same VM, say the database and a Memorystore instance beside it, create a forward profile yourself in Connections › Forwards › New Forward Profile…. It forwards several ports at once over one SSH session, to any address the VM can reach, and can manage /etc/hosts aliases while it runs. With a host alias, a forward can also listen on 443 or 22 on your Mac: see Forward ports 443 and 22 to your Mac.

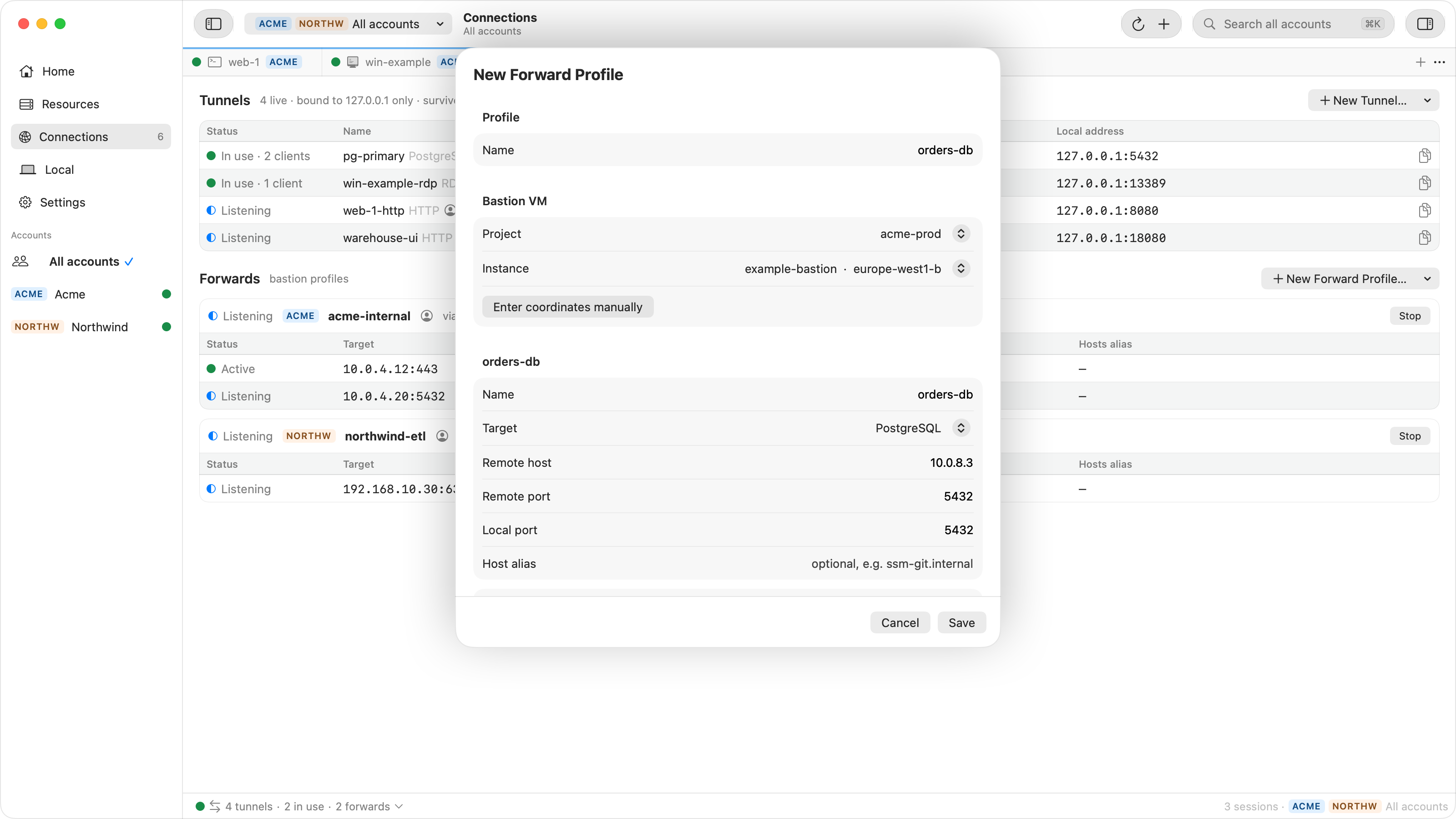

Ostgate's New Forward Profile sheet over the Connections view: profile orders-db, bastion VM example-bastion in project acme-prod, zone europe-west1-b, and a PostgreSQL forward to remote host 10.0.8.3 port 5432 on local port 5432, with an optional host alias.
New Forward Profile through a bastion VM

Ostgate only carries the TCP connection. Your SQL client signs in to the database with its own user and password, and Ostgate never asks for, reads or stores a database credential.

What it does not do

  • Instances with only a public IP are not supported: Open Tunnel… is disabled for them, with the reason.
  • It does not speak the Cloud SQL Auth Proxy protocol. An instance that enforces the Cloud SQL connectors for every connection refuses a direct connection through a VM, whichever tool carries it.
  • It needs a running VM that can reach the database and that you can SSH to. It does not create one for you.
  • It does not create a Private Service Connect endpoint. For a PSC instance without one, the Private IP column reads “no endpoint” and Open Tunnel… is off, with the reason.

Step-by-step settings for DBeaver, DataGrip and TablePlus, including SSL mode, are in DBeaver, DataGrip or TablePlus to a Cloud SQL private IP.

Checklist when it does not connect

SymptomCheck
The SSH hop to the VM fails Firewall from 35.235.240.0/20 on tcp:22, the IAP tunnel role, and OS Login or metadata key access to the VM.
Forward opens, client times out The VM is on a different VPC, or on one peered to the database's VPC rather than the one the instance uses.
PSC instance: forward opens, client times out The VM is not on the network that holds the PSC endpoint, or the endpoint is still PENDING because its project is not in the instance's allowed projects.
Client connects, server refuses The database user or password, or an SSL requirement: add sslmode=require for PostgreSQL.
No instances listed in Ostgate The Cloud SQL Admin API is off in that project, or the account lacks roles/cloudsql.viewer. The project's row says which.

Questions

Can I use the Cloud SQL Auth Proxy from my laptop for a private-IP instance?

Only if your laptop has a network route to the instance's VPC, through a VPN or Interconnect. The proxy adds IAM authorization and TLS; it does not create a route to a private address.

Does the jump host need a public IP?

No. Identity-Aware Proxy reaches the VM's internal address, so a VM without an external IP works as long as the firewall allows 35.235.240.0/20 on tcp:22.

Does Ostgate handle my database password?

No. Ostgate only carries the TCP connection. Your SQL client signs in to the database with its own user and password, and Ostgate never asks for, reads or stores a database credential.

Does Ostgate connect to a Cloud SQL instance that only has a public IP?

No. Open Tunnel… is available only for instances with a private IP, and is disabled with the reason for a public-only instance.

How do I connect to a Cloud SQL instance that has only Private Service Connect?

Through a VM on the network that holds the instance's PSC endpoint: forward a local port over IAP to the endpoint's internal IP. The endpoint has to be in a project the instance allows, or it stays PENDING and nothing connects.

Point your SQL client at 127.0.0.1. Ostgate runs on Apple Silicon Macs with macOS 15 or later, with a 7-day trial and no sign-up. Setup is in the tunnels and forwards docs.
